Looking for lightweight, high‑performance digital advertising solutions for retail outlets and exhibition booths? JERYO, a professional LED poster screen source factory with 10,000‑square‑meter production workshop and ample ready stock, supplies full‑spec ultra‑slim LED poster display covering P1.86, P2, P2.5 pixel pitch options to meet diverse commercial visualization demands.
Product Specificatio
| Item | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Pixel pitch | P1.86 | P2 | P2.5 |
| LED Type | SMD1010 | SMD1515 | SMD2020 |
| Module Resolution | 160×120dots | 128×96dots | 108×81dots |
| Module Size | 280×210mm | 280×210mm | 280×210mm |
| Panel Dimension | 640×1920mm | 640×1920mm | 640×1920mm |
| Panel Weight | ≤27kg | ≤27kg | ≤27kg |
| Maintenance Mode | Front&Back | Front&Back | Front&Back |
| Cabinet Frame | Die‑cast aluminum | Die‑cast aluminum | Die‑cast aluminum |
| Brightness | 600‑800nits | 600‑800nits | 600‑800nits |
| Gray Grade | 16bit | 16bit | 16bit |
| Viewing Angle | 160°/160° | 160°/160° | 160°/160° |
| Frame Frequency | ≥60Hz | ≥60Hz | ≥60Hz |
| Refresh Frequency | 1920‑3960Hz | 1920‑3960Hz | 1920‑3960Hz |
| Drive Mode | 1/40s | 1/32s | 1/27s |
| Protection Degree | IP31 | IP31 | IP31 |
| Max Power Consumption | 600w/m² | 600w/m² | 600w/m² |
| Avg Power Consumption | 200w/m² | 200w/m² | 200w/m² |
| Power Requirement | AC90‑264V 50‑60Hz | AC90‑264V 50‑60Hz | AC90‑264V 50‑60Hz |
| Working Temperature & Humidity | -20‑60℃ /10‑85% | -20‑60℃ /10‑85% | -20‑60℃ /10‑85% |
| Storage Temperature & Humidity | -20‑60℃ /10‑85% | -20‑60℃ /10‑85% | -20‑60℃ /10‑85% |

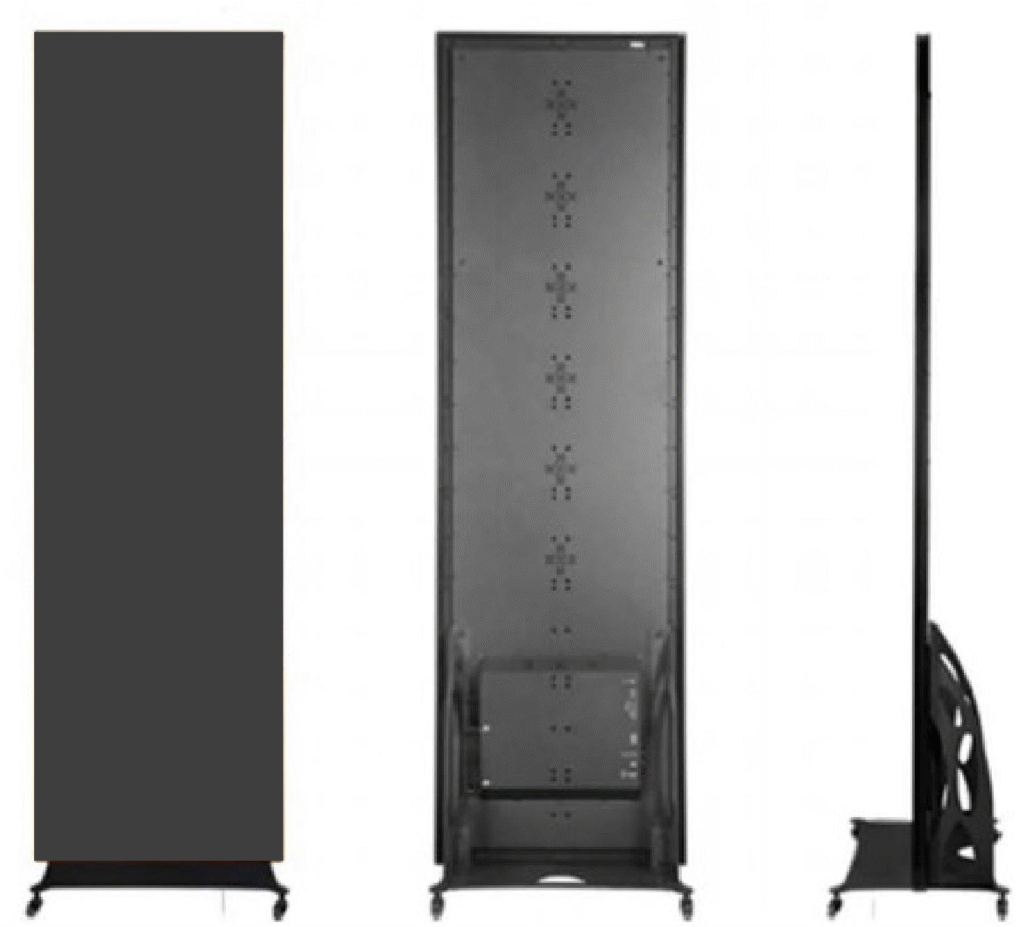

Our LED poster screen adopts high‑quality SMD lamp beads. The unified module size 280×210mm and standard panel dimension 640×1920mm, cabinet weight ≤27kg, the die‑cast aluminum cabinet realizes ultra‑slim & lightweight structure, easy for moving, installation and quick setup for pop‑up events.
Featuring both front and back maintenance mode, technicians can replace components from front or rear side without dismantling the whole screen, greatly lowering post‑sales maintenance cost for retail and exhibition projects.
For visual performance, brightness reaches 600‑800nits, 16‑bit gray scale delivers rich color gradation. Wide viewing angle 160°/160° ensures consistent image effect from every direction. Frame frequency ≥60Hz, refresh frequency 1920‑3960Hz eliminate flicker, presenting smooth video and graphic content for shoppers and exhibition visitors. Different drive modes match different pixel pitch models for stable running.
IP31 protection degree adapts to normal indoor commercial environment. Max power consumption 600w/m² and average power consumption 200w/m² realize energy‑saving operation. Wide voltage input AC90‑264V 50‑60Hz fits global market. Wide working & storage temperature‑humidity range supports long‑hour continuous operation in retail shops, trade show booths, brand lobby and chain store campaigns.

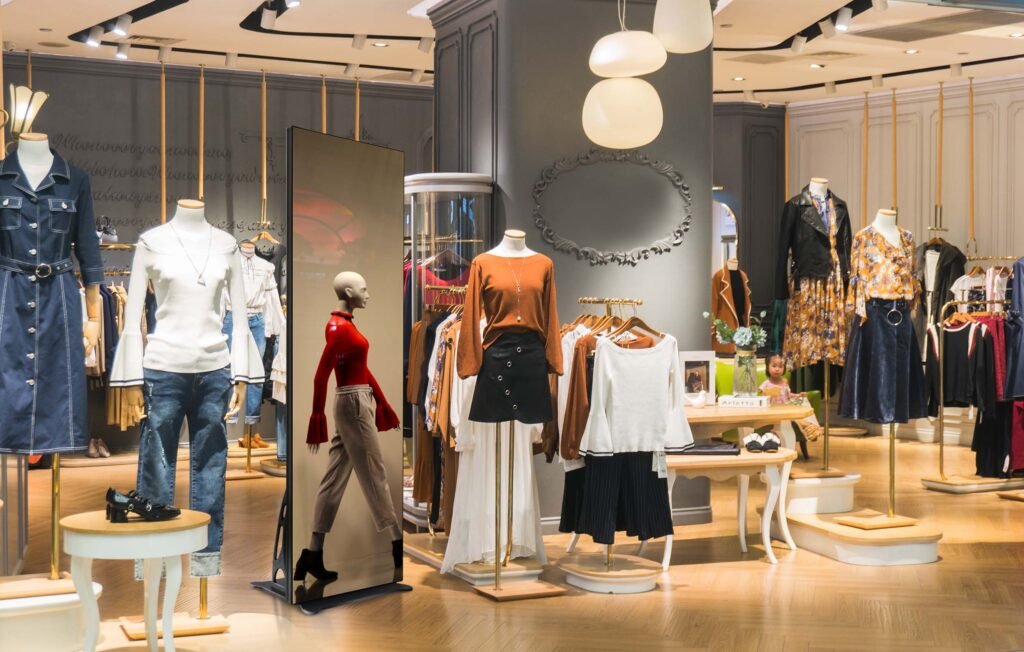

As a source manufacturer, JERYO owns 10,000‑square‑meter factory building with sufficient inventory. We support model selection of P1.86 / P2 / P2.5 LED poster screen, can cater for bulk order and custom requirements. Whether you need digital poster for retail product promotion or eye‑catching display for exhibition booth, our ultra‑slim LED poster display is your trustworthy commercial digital signage choice.
Contact JERYO today to get your LED poster screen quotation
