As a professional LED display manufacturer, JERYO has delivered hundreds of grille LED screen projects for global clients. Many buyers feel confused when sourcing grille LED screens: how does it differ from conventional LED panels? What factors should be checked before placing orders? Which projects are suitable for grille LED solutions? This sourcing guide sorts out core knowledge, product strengths and typical application scenarios for your reference.
What Is Grille LED Screen

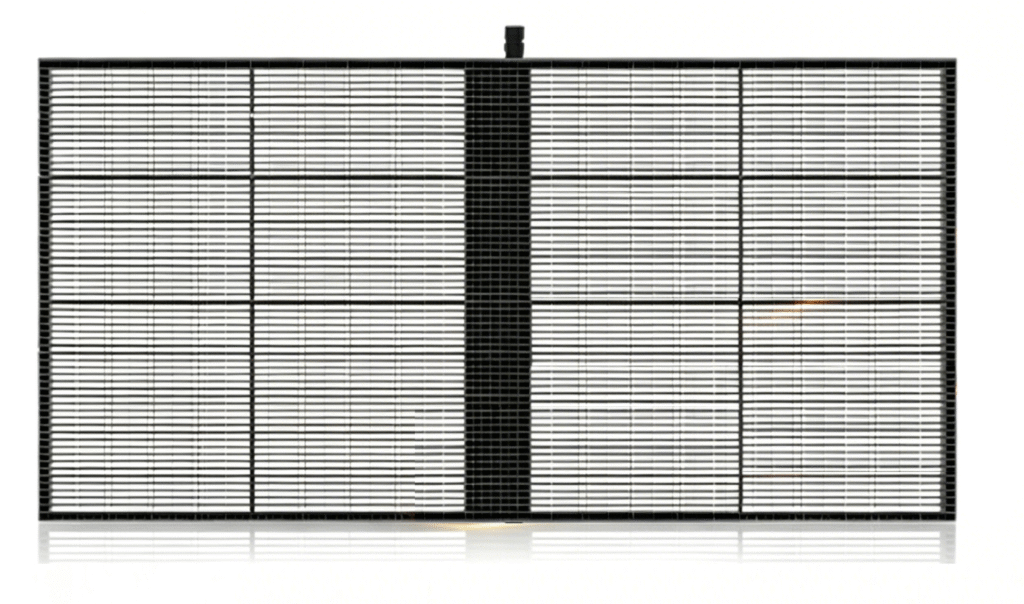

Grille LED screen, also known as transparent grille LED display, adopts strip‑shaped modular hollow structure. Different from solid‑face LED screens, large gaps exist between LED lamp bars. Air and light can pass through the screen body. This unique structural feature makes it widely used for building facades, glass curtain walls and high‑altitude outdoor projects.
For purchasers, grille LED screen is not a one‑size‑fits‑all product. JERYO always suggests confirming building conditions, local wind level, transparency requirement and brightness standard in the early project stage to avoid improper model selection.
Core Advantages of Grille LED Screen
| Parameter Term | P15.625 | P25 | P31.25 | P50 |
|---|---|---|---|---|
| Pixel Spacing (mm) | W15.625 × H15.625 | W31.25 × H31.25 | W25 × H25 | W50 × H50 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Visual Transparency | 70% | 80% | 75% | 85% |
| Pixels per m² | 4096 | 1600 | 1024 | 400 |
| Brightness (cd/m²) | 2000–6000 | 2000–5500 | 1000–3000 | 1000–2500 |
| Maximum Power Dissipation /m² | 800W | 800W | 800W | 800W |
| Power Consumption per m² | 240W | 240W | 240W | 240W |
| Case Dimensions (mm) | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 | 1000 × 1000 |
| Drive Mode | Static State | Static State | Static State | Static State |
| Weight (kg/m²) | 15 | 15 | 15 | 15 |
| LED Light Bead | 3535RGB | 3535RGB | 3535RGB | 3535RGB |
| Screen Refresh Rate | 1920/3840 Hz | 1920/3840 Hz | 1920/3840 Hz | 1920/3840 Hz |
| Levels of Protection | IP65 | IP65 | IP65 | IP65 |
| Gray Level | 16 bit | 16 bit | 16 bit | 16 bit |
| Brightness Control | Level 256 | Level 256 | Level 256 | Level 256 |
| Panel Material | Aluminum Frame + Light Strip | Aluminum Frame + Light Strip | Aluminum Frame + Light Strip | Aluminum Frame + Light Strip |
| Drive IC | Transparent Screen Dedicated Driver | Transparent Screen Dedicated Driver | Transparent Screen Dedicated Driver | Transparent Screen Dedicated Driver |
| Maintenance Method | Pre / Post Maintenance | Pre / Post Maintenance | Pre / Post Maintenance | Pre / Post Maintenance |
| Quality Guarantee Period | 2 Years | 2 Years | 2 Years | 2 Years |
| LED Bead Lifespan | 100,000 Hours | 100,000 Hours | 100,000 Hours | 100,000 Hours |
| Control System | Transparent Screen Dedicated System | Transparent Screen Dedicated System | Transparent Screen Dedicated System | Transparent Screen Dedicated System |
| Display Interface | Terminal DIV / HDMI | Terminal DIV / HDMI | Terminal DIV / HDMI | Terminal DIV / HDMI |
| Work Environment | -10°C to 40°C | -10°C to 40°C | -10°C to 40°C | -10°C to 40°C |
| Panel Power Supply | Power Supply for Transparent Screen | Power Supply for Transparent Screen | Power Supply for Transparent Screen | Power Supply for Transparent Screen |
| Working Voltage | 220±5% / 170±5% → DC5V (Display) | 220±5% / 170±5% → DC5V (Display) | 220±5% / 170±5% → DC5V (Display) | 220±5% / 170±5% → DC5V (Display) |
| Input Voltage | AC100~240V 50Hz | AC100~240V 50Hz | AC100~240V 50Hz | AC100~240V 50Hz |
1. Low Wind Load for High‑rise Installation
Wind load performance is the most critical index for outdoor facade projects. Hollow grille structure allows airflow to go through directly, greatly cutting wind pressure compared with closed LED screens. It reduces requirements for steel frame and building bearing capacity, which is ideal for high‑rise buildings and coastal regions with frequent strong winds or typhoons. Less auxiliary steel structure also controls your overall project cost.
2. High Transparency Without Blocking Sight
Transparency rate ranges from 40% to 90% according to different models. When the screen is off, it barely disturbs building exterior appearance and indoor daylight. It will not obstruct indoor view for glass curtain wall buildings. At night, it outputs bright and clear advertising content, realizing “original building look in daytime, digital media wall at night”.
3. Light‑weight Structure
Grille LED screen features low weight per square meter. It puts little burden on building walls and curtain walls. It supports hoisting and frame‑mount installation. For renovation projects where original building cannot bear heavy loads, grille LED screen becomes a feasible alternative to traditional LED displays.
4. Natural Heat Dissipation & Outdoor Durability
Open hollow design forms natural air convection, removing heat without extra cooling fans. Less fan parts lower later failure rate and noise. Industrial‑grade waterproof and anti‑corrosion treatment adapts to rain, high temperature and humid outdoor environments, extending service life for long‑term running.
Typical Project Application Scenarios

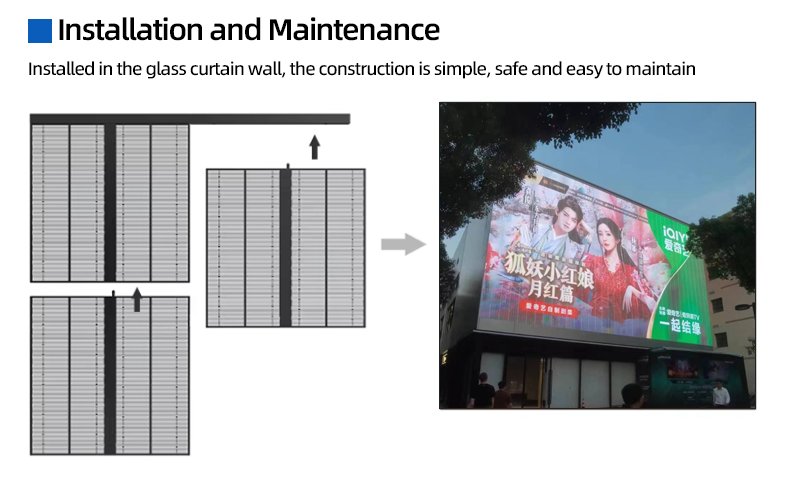

- Commercial Building Facades & Glass Curtain Walls Shopping malls, commercial complexes and office tower curtain walls are the largest application markets. Grille LED screens integrate into building exterior without destroying original architectural design for digital branding and advertising broadcasting.
- High‑rise & Coastal Landmark Projects For high‑altitude exterior walls and coastal cities facing strong wind threats, low wind‑load property solves the safety risk of large outdoor screens. Many city landmark media wall projects choose JERYO grille LED solutions for stable long‑time operation.
- Hotel & Leisure Venue Exterior Walls Hotels, exhibition centers and scenic spot buildings use grille LED screens for brand image release and atmosphere creation. It keeps building aesthetic while adding digital vitality.
- Old Building Facade Renovation Many old buildings have limited load‑bearing capacity. Heavy solid LED screens cannot be installed. Light‑weight grille LED screen realizes digital upgrading of old facades without large‑scale reconstruction.
Key Sourcing Tips From JERYO Factory
When you source grille LED screens from manufacturers, do not only focus on price. JERYO recommends checking these points:
- Actual transparency and brightness matching your installation environment
- Wind resistance grade and structural material quality
- IP waterproof rating for outdoor working conditions
- Modular compatibility for easy maintenance and replacement
- Factory project experience and after‑sales support system
Cheap products with poor material may bring hidden danger for high‑altitude outdoor projects. Reliable grille LED display should balance performance, safety and cost.
Final Summary
Grille LED screen has become a mainstream option for modern building digital facades, thanks to low wind load, high transparency, light weight and good weather resistance. Clarify your project site condition and functional demands before purchasing. Working with experienced manufacturer like JERYO helps you pick suitable model and reduce project risks.
If you need further support, JERYO can provide customized solution drawing and technical consultation for your upcoming grille LED screen projects.
