Flexible and efficient display solution for LED rental screens

（1） Pixel spacing selection

Indoor scene: If the audience is viewing at a close distance, such as a theater, conference room, etc., it is recommended to use products with small pixel spacing, such as P2.5 and below specifications, which can present extremely delicate images, clear and sharp text edges, and fully display image details. Even when viewed up close, there will be no obvious graininess, meeting the strict requirements for image quality in high-end performances, conference displays, etc.

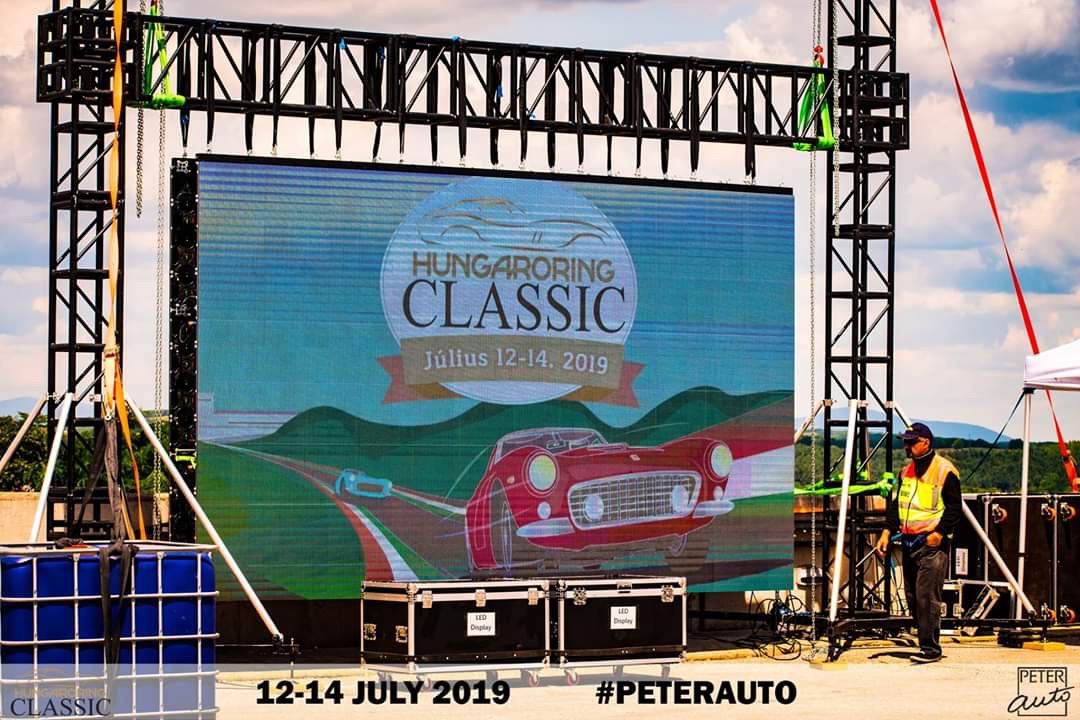

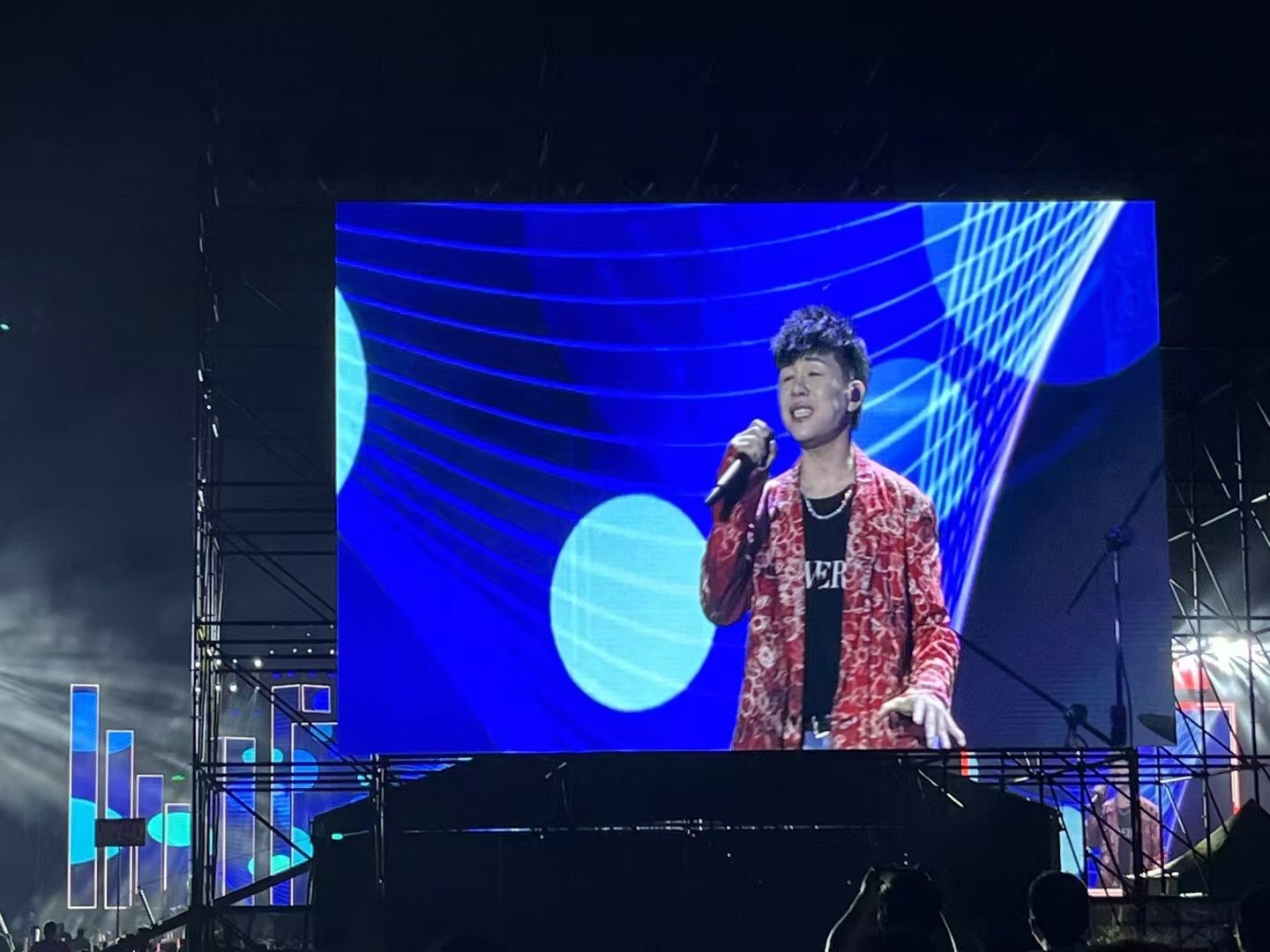

Outdoor scenes or large venues: If the audience has a long viewing distance, products with a pixel spacing of P4-P8 can be considered. Taking music festivals and large-scale concerts as examples, these spacing products have high brightness and wide viewing angles, which can ensure that the rear audience can also see the screen content clearly. At the same time, they balance cost and display effect. When viewed from a distance, the overall picture is strong, and the color expression is still excellent.

（2） Box design considerations

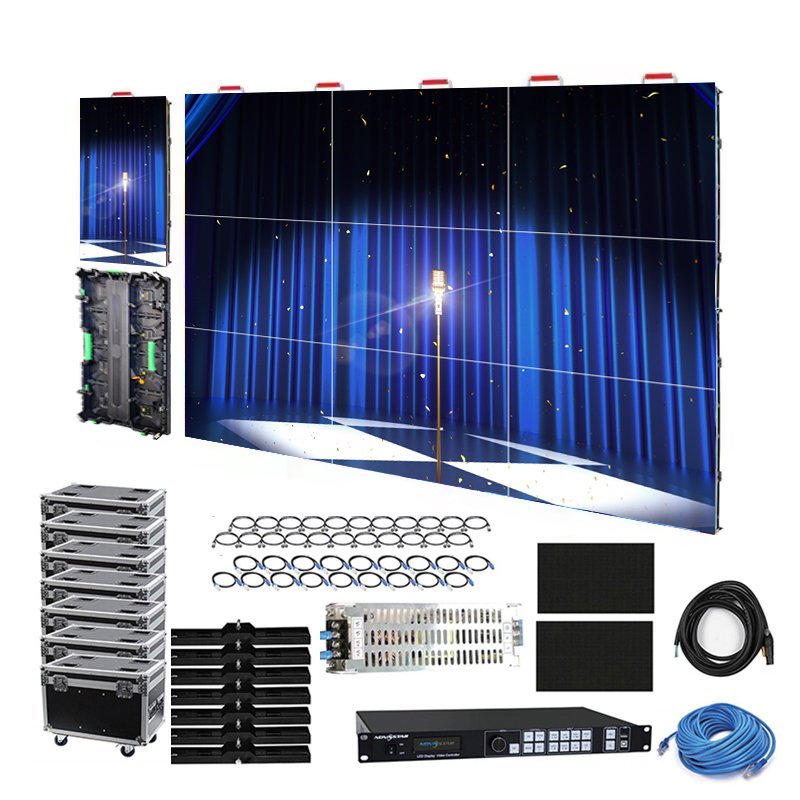

Lightweight and structurally strong: The use of die cast aluminum material for the box body, such as the common 500mm × 500mm and 500mm × 1000mm specifications, results in a lightweight individual box body that is easy to transport by a single person. During the rapid construction and dismantling process of the stage, it can greatly save labor costs; And the die-casting aluminum material has high strength and good toughness, and is not easily deformed during frequent handling, ensuring the stability of long-term rental use.

Splicing accuracy and flexibility: High precision processing technology ensures that the box size tolerance is less than 0.2mm, ensuring seamless splicing and natural and smooth transition of the image; Some models support staggered splicing, and the side of the box is equipped with a curved scale edge lock design, which can splice any curvature from -15 degrees to 15 degrees, facilitating the creation of diverse stage shapes such as inner arc, outer arc, right angle, etc., meeting the needs of creative performances.

（3） Protection level requirements

Outdoor use: Outdoor performances are susceptible to wind and rain, and display screens with a protection level of IP65 or higher should be selected. This level means that the display screen can effectively prevent water and dust, and can work normally even in light rain or sandstorm environments, protecting internal electronic components from damage and ensuring smooth performance.

Indoor special environment: If the indoor humidity is high or there is a lot of dust, such as in some industrial themed performance venues, it is also recommended to choose a display screen with certain protective capabilities, such as IP40 protection level, which can prevent large particles of dust from entering and extend the service life of the display screen.
